Why ampmeter volt output doesnt works with scope?
Hello, good evening.

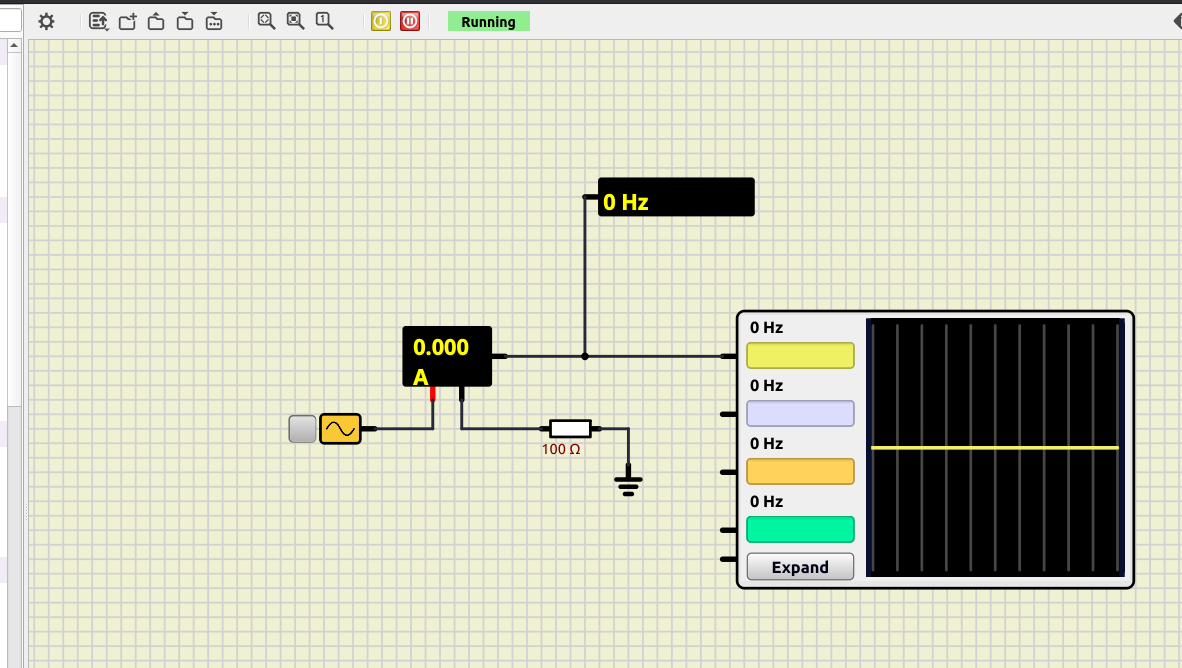

Im having troubles working with an ampmeter to show its results in osciloscope. The signal is not propagating to osciloscope.
I have 5V to source/senoid with 1khz frequency.
Must have 5/100 = 0.050mA senoid in output.
May someone help?
Hi.
The output of Amp meter updates at low frequency, by default 20 times per second.
So it will not show a 1 KHz signal.
Hello, thanks for your feedback. I observe that tunning the simulation fps and the simulation speed options I can put it to work but its a bit strange. Do you have any hints for simulate frequencies more than 1 khz and use oscope?
For voltage you can just connect oscope to any wire.

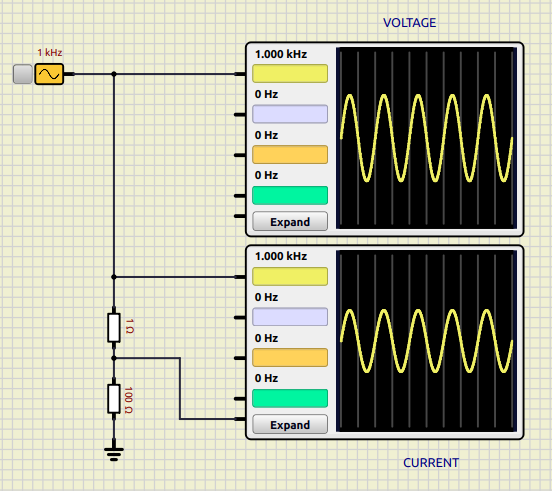

For current maybe you can use a shunt resistor and use oscope reference pin (last one), but this depends on the specific case:
