Triple-NAN input gate IC?

#1 · March 28, 2024, 8:40 am

Is there a similar IC to 74LS10 or CD4023? A triple-NAN input gate IC?

#2 · March 29, 2024, 11:56 am

74HC10 in High speed CMOS technology and 74LS12 in TTL Open Collector...

#3 · March 29, 2024, 12:42 pm

Hi Defran, where are they? I cannot find them. I'm using versions: 1.0.0. SR0R1320 and T1751.

Thanks

#4 · March 29, 2024, 2:42 pm

Ah, you mean these components in Similide, not commercially... Gates, inverters and other multiple elements per chip must be taken individually from the "logic" section of the components menu for rationalization and understanding of the diagram, otherwise it would form unnecessary graphical wire-crossing gibberish.

#5 · March 29, 2024, 4:46 pm

Yes. In SimulIDE. They're not there. Any possibility of emulating it?

#6 · March 29, 2024, 6:36 pm

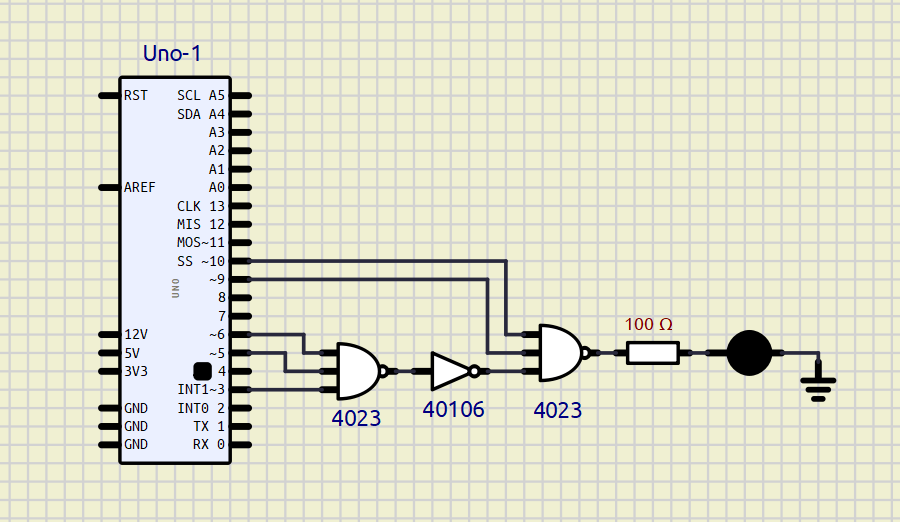

For instance...

#7 · March 30, 2024, 6:57 pm

Yes, with gates I know. I meant using another IC if any in SImulIDE.

Thanks.

#8 · March 31, 2024, 12:04 pm

I' finally made my own 7483. Here it is just in case anybody might be interested in it.

Uploaded files:

sumador_7483.zip
