PIC12F683 capture mode
#1 · December 31, 2025, 6:16 pm
Hello,
In the CCP1M<3:0>: CCP Mode Select bits, we have the following options :
0100 = Capture mode, every falling edge
0101 = Capture mode, every rising edge
0110 = Capture mode, every 4th rising edge
0111 = Capture mode, every 16th rising edge
Are 0110 and 0111 mode implemented in SimulIDE ?
When I send a 500Hz signal to CCP1 pin (GP2), then GP0 should toggle at every interruptions generated, that is : 500 / 4 (for every 4 rising edge) / 2 = 62.5Hz ; this is what I read on my oscilloscope, but Simulide v 1.1.0 SR1 rev 2089 gives 250Hz whatever the CCP1M settings.
#2 · January 1, 2026, 5:19 pm
Hi.
Can you share circuit and code to reproduce the issue?
#3 · January 2, 2026, 8:16 pm
#4 · January 5, 2026, 8:50 pm
Hello,

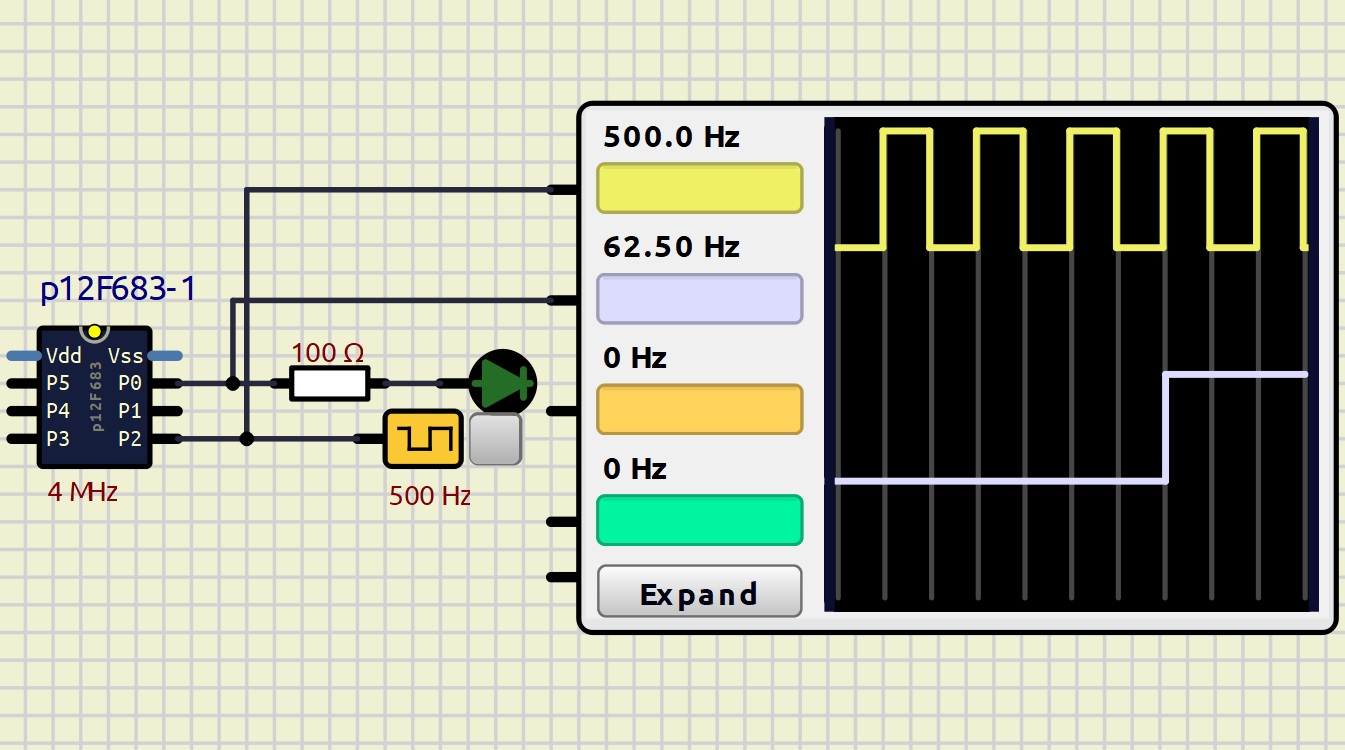

Looks like the correction is working - great job !
arcachofo has reacted to this post.
arcachofo
