Ohm meter in SimulIDE?

alin89c
alin89c@alin89c
11 Posts
#1 · January 6, 2024, 11:43 am

Hi! Is it possible to measure the total resistance of a circuit? I couldn't find an Ohm meter... 😢

Click for thumbs down.0Click for thumbs up.0
Defran
Defran@defran
125 Posts
#2 · January 6, 2024, 12:10 pm

You have here an example...

Uploaded files:
Click for thumbs down.0Click for thumbs up.1
alin89c has reacted to this post.
alin89c
alin89c
alin89c@alin89c
11 Posts
Topic Author
#3 · January 6, 2024, 1:21 pm

Hi! I downloaded your archive and opened the .sim1 file. Now I'm not sure where the two measuring probes are supposed to be connected...

Click for thumbs down.0Click for thumbs up.0
Defran
Defran@defran
125 Posts
#4 · January 6, 2024, 2:24 pm

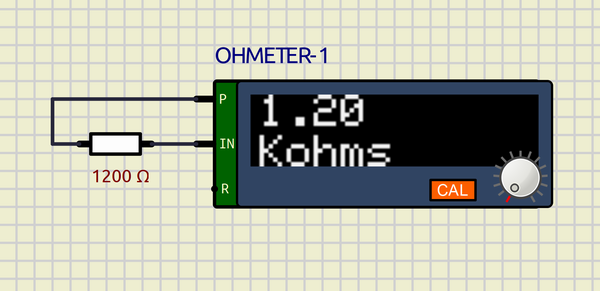

Uploaded files:
Click for thumbs down.0Click for thumbs up.1
Last edited on January 6, 2024, 3:14 pm by Defran
alin89c has reacted to this post.
