LiquidCrystal library changes to work with LcdShield

nbpat
nbpat@nbpat
1 Post
#1 · January 19, 2024, 11:08 pm

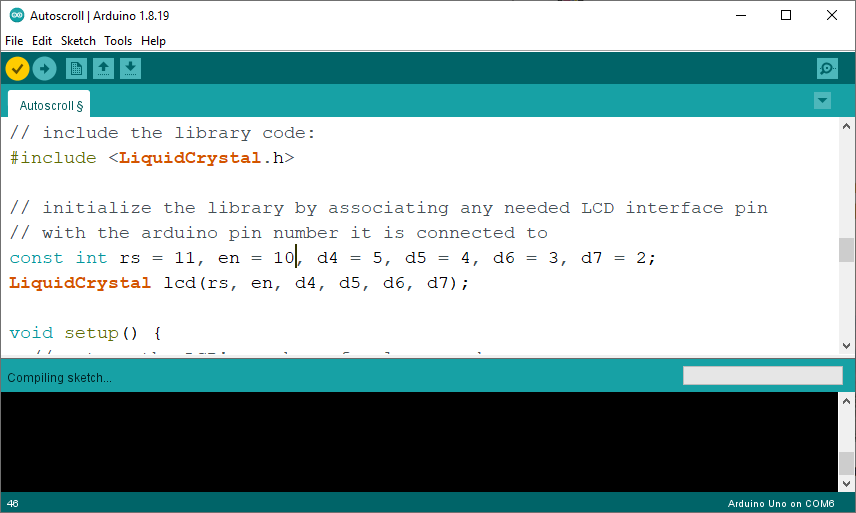

LiquidCrystal library uses rs = 12, en =11 by default.  Change to rs = 11, en = 10 and the sketch will work on the LcdShield.

change in default screen connections

lcd shield

Click for thumbs down.0Click for thumbs up.0
Last edited on January 19, 2024, 11:09 pm by nbpat
arcachofo
arcachofo@arcachofo
574 Posts
#2 · January 20, 2024, 8:53 am

Hi.

You can configure how the pins are connected if you want.
Just open the circuit in: SimulIDEdata/shields/LcdShield/LcdShield.sim1

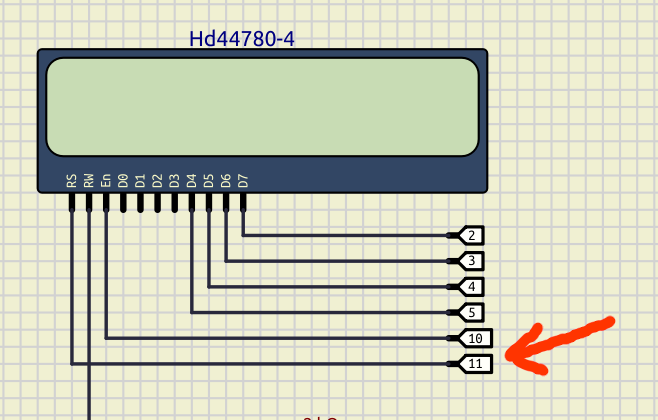

And change the numbers in the tunnels connected to RS & E Pins:

Click for thumbs down.0Click for thumbs up.1
