issues with buses
i was doing a couple logic stuff and i found an issue with buses that im not sure is a bug or me using them wrong.

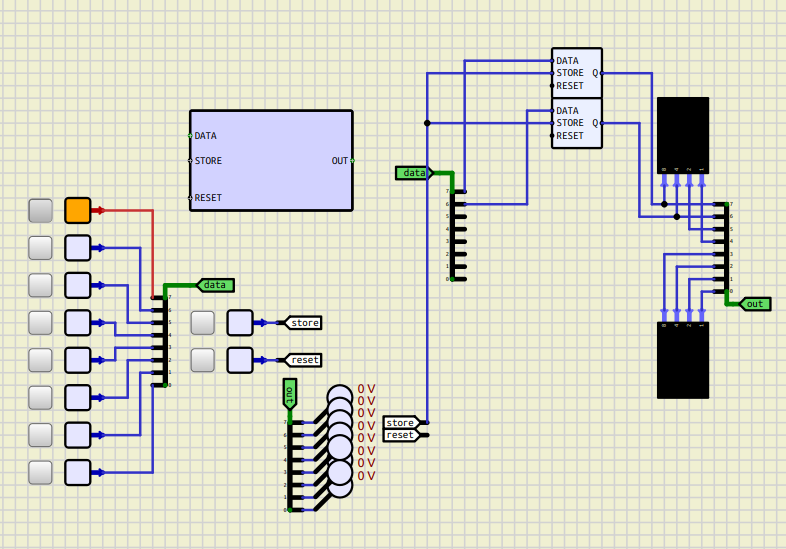

i made a simple 1 bit register. it just stores a value. then i proceeded to an 8 bit one, so i stacked 8 of them and used a 8bit bus as input and output.
for some reason, after i select the store button, the value is displayed, aka its outputing it, but if i untick store, it goes back to 0
UPDATE: i figured out the issue, but its weird. Apparently, if i have more than 1 of my 1bit subcircuits, only the last placed works??
I doubt that the problem is about buses, but who knows.
In any case, can you share the circuit to test it?
i have been thinkering alot with the circuit, so its a bit diferent. but as i said, i figured out the issue. only the last placed subcircuit works. perhaps something related with output refeeding (sequential) logic circuits down the chain?
U would need to add 2 extra subcircuits for u to try it, but here u go:
Uploaded files:Not sure if these are the correct files, 8bit register.sim1 contains this:
UPDATE: i figured out the issue, but its weird. Apparently, if i have more than 1 of my 1bit subcircuits, only the last placed works??
Ok, now I remember, it must be this problem:
https://simulide.com/p/forum/topic/incorrect-connection-of-pins-of-two-instances-of-custom-package/
so its some weird inner bug when we stack 2 or more subcircuits? im using the latest most stable version. is that vesion on the report more modern?
Yes, it happens when there are several subcircuits of the same type inside a subcircuit that is inside another subcircuit (2 levels of nesting).
And yes, that one is newer.
Is it one of the test unstable builds, or it's literally the most stable version with this specific correction (and maybe others u hve done and saved)?
The later: the most stable version with this specific correction and others.
Thank you. Also, about subcircuits. This is a sugestión, not really for help.
This would be low priority, but have U ever thought about a button, that once u click in start simulation, u get an option in subcircuits to "peak inside them", and see the inputs and outputs working (including with animated circuit option)?
