feature request xy plotter, video and audio play button for circuit tutorials

#1 · August 26, 2025, 1:09 pm

For teaching would be nice to use scope in x y mode or to have a plotter.

Also would like to include buttons in circuits to run/ play an audio or video file.

#2 · August 27, 2025, 8:57 am

Hi.

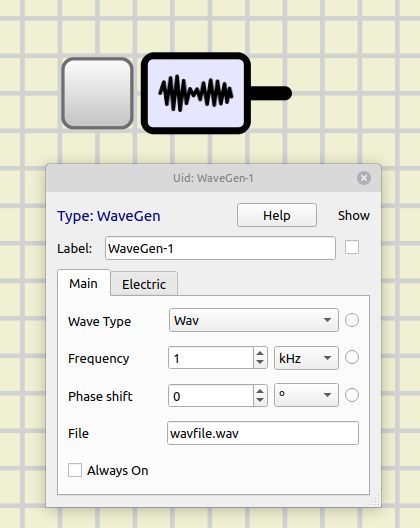

You can play a wave file in a WaveGen" component:

#3 · August 27, 2025, 9:37 am

Thanks for quick reply.

Great I will experiment with that.

#4 · August 27, 2025, 9:57 am

Sorry but not seeing the file name on my wave gen prop.

Tim

Circuitproto

Uploaded files:

#5 · August 27, 2025, 10:59 am

Select Wave type = Wav

#6 · August 27, 2025, 11:13 am

Thanks for help and image link. Just so much info and resources!!

arcachofo has reacted to this post.
