Custom characters on Hd44780
![roboter](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)
Quote from roboter on March 26, 2024, 9:49 pmI made a video about SimulIDE
https://www.youtube.com/watch?v=hfW3rGCxj0Q&pp=ygUIc2ltdWxpZGU%3D
and stumble on a bug that custom characters did not work
It use this library https://github.com/pololu/pololu-hd44780-arduino
there 2 examples and one use loadCustomCharacters();
and with this function there nothing on display
I made a video about SimulIDE
and stumble on a bug that custom characters did not work
It use this library https://github.com/pololu/pololu-hd44780-arduino
there 2 examples and one use loadCustomCharacters();
and with this function there nothing on display
![arcachofo](https://simulide.com/p/storage/ultimatemember/2/profile_photo-80x80.png?1725763330)
Quote from arcachofo on March 27, 2024, 5:58 amHi, great video.
Thank you very much for reporting, but I'm not sure there is any problem.
Custom characters works for me.First note that pololu-hd44780-arduino library is quite old and not maintained.
That doesn't mean it should not work, but I see several problems.I used the example provided in the library: Test.ino
1- Function wait()
This is supposed to send data and wait for data from the serial port.
Is seems to use a macro (or similar): SERIAL_PORT_MONITOR
But I don't find where it is defined and in any case Serial is not initialized.
So I don't see how this is supposed to work, if you know please tell me .void wait(uint16_t id) { SERIAL_PORT_MONITOR.println(id); SERIAL_PORT_MONITOR.flush(); while(SERIAL_PORT_MONITOR.read() == -1); }
Solution:
You can try replacing wait() by delay(500) for example, or initialize and use Serial to wait for data from the user.
2- After writing to CGRAM it does not return to DDRAM:
loadCustomCharacters(); // Test both overloads of write // Expected screen: "Hello " // " " lcd.clear(); lcd.write('H'); // Here it tries to write to DDRAM, but LCD is still in CGRAM lcd.write("ello");
Solution:
Add a lcd.gotoXY before lcd.write:loadCustomCharacters(); // Test both overloads of write // Expected screen: "Hello " // " " lcd.clear(); lcd.gotoXY(0, 0); // This returns the LCD to DDRAM lcd.write('H'); lcd.write("ello");
Hi, great video.
Thank you very much for reporting, but I'm not sure there is any problem.
Custom characters works for me.
First note that pololu-hd44780-arduino library is quite old and not maintained.
That doesn't mean it should not work, but I see several problems.
I used the example provided in the library: Test.ino
1- Function wait()
This is supposed to send data and wait for data from the serial port.
Is seems to use a macro (or similar): SERIAL_PORT_MONITOR
But I don't find where it is defined and in any case Serial is not initialized.
So I don't see how this is supposed to work, if you know please tell me .
void wait(uint16_t id)
{
SERIAL_PORT_MONITOR.println(id);
SERIAL_PORT_MONITOR.flush();
while(SERIAL_PORT_MONITOR.read() == -1);
}
Solution:
You can try replacing wait() by delay(500) for example, or initialize and use Serial to wait for data from the user.
2- After writing to CGRAM it does not return to DDRAM:
loadCustomCharacters();
// Test both overloads of write
// Expected screen: "Hello "
// " "
lcd.clear();
lcd.write('H'); // Here it tries to write to DDRAM, but LCD is still in CGRAM
lcd.write("ello");
Solution:
Add a lcd.gotoXY before lcd.write:
loadCustomCharacters();
// Test both overloads of write
// Expected screen: "Hello "
// " "
lcd.clear();
lcd.gotoXY(0, 0); // This returns the LCD to DDRAM
lcd.write('H');
lcd.write("ello");
![roboter](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)
Quote from roboter on March 27, 2024, 6:52 pm1- Function wait()
SERIAL_PORT_MONITOR is defined in pins_arduino.h
#define SERIAL_PORT_MONITOR Serial
but yes it missing
SERIAL_PORT_MONITOR.begin(9600);
2- After writing to CGRAM it does not return to DDRAM:
there also
lcd.clear();
but yes with
lcd.gotoXY(0, 0); // This returns the LCD to DDRAM
it started to workI will later try on real hardware and make another video 🙂
1- Function wait()
SERIAL_PORT_MONITOR is defined in pins_arduino.h#define SERIAL_PORT_MONITOR Serial
but yes it missing
SERIAL_PORT_MONITOR.begin(9600);
2- After writing to CGRAM it does not return to DDRAM:
there also
lcd.clear();
but yes with
lcd.gotoXY(0, 0); // This returns the LCD to DDRAM
it started to work

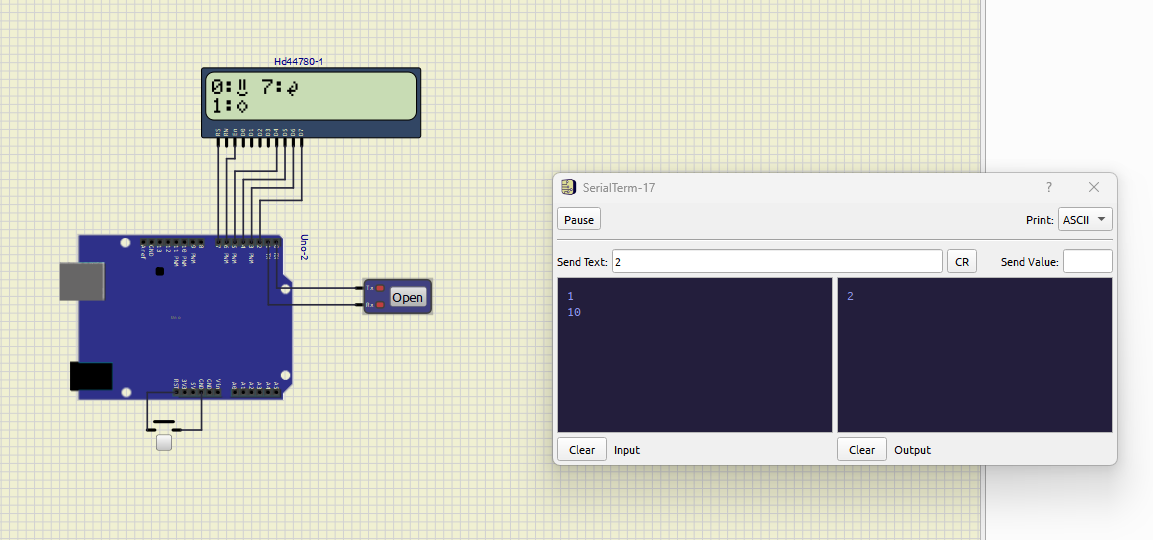

![](https://simulide.com/p/storage/userfiles/roboter/posts/202403271711565517.png)
