Bug in analog power supply
Hi! I would like a report a bug related to analog power supplies and how currents are calculated on a circuit mesh.

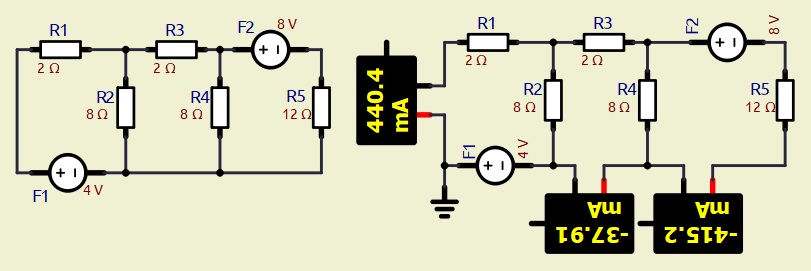

I tried to make a circuit with 3 meshes, and by solving it with KVL, I got the mesh currents are 0.4, 0 and -0.4 [A] (left to right, clockwise)
However, trying to simulate it gives me very different values (440.4, 37.91, and -415.2 [mA]). I've already tried with independent power supplies, placing the ground terminal on different positions, and using batteries with very low internal resistance (0.001 pOhms), but I always got an incorrect value. I also tried on other simulators and I got the expected current values. Am I doing somwthing wrong?
Thanks in advance
Hi. Thanks for reporting.
By now you can try with Batteries and not so low internal reisteance, for exaple 1pΩ.
