Bug for 3 phase power integrated by wave gen.
![a13257968](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)

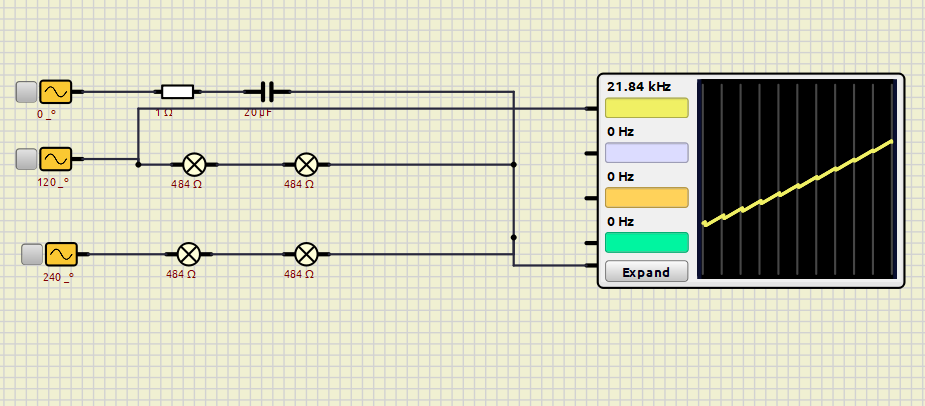

Quote from a13257968 on April 13, 2024, 1:45 pmThe attachment is the circuit that simulation of 3 phase power integrated by three wave gen., but as you can see, the frequency of Oscope is very unstable and cause is wave has a lot of suddently spiker. Here is a png for u:
The attachment is the circuit that simulation of 3 phase power integrated by three wave gen., but as you can see, the frequency of Oscope is very unstable and cause is wave has a lot of suddently spiker. Here is a png for u:
![a13257968](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)
Quote from a13257968 on April 13, 2024, 1:48 pmSorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
Sorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
![arcachofo](https://simulide.com/p/storage/ultimatemember/2/profile_photo-80x80.png?1725762844)
Quote from arcachofo on April 13, 2024, 1:56 pmSorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
To upload files you can zip it first.

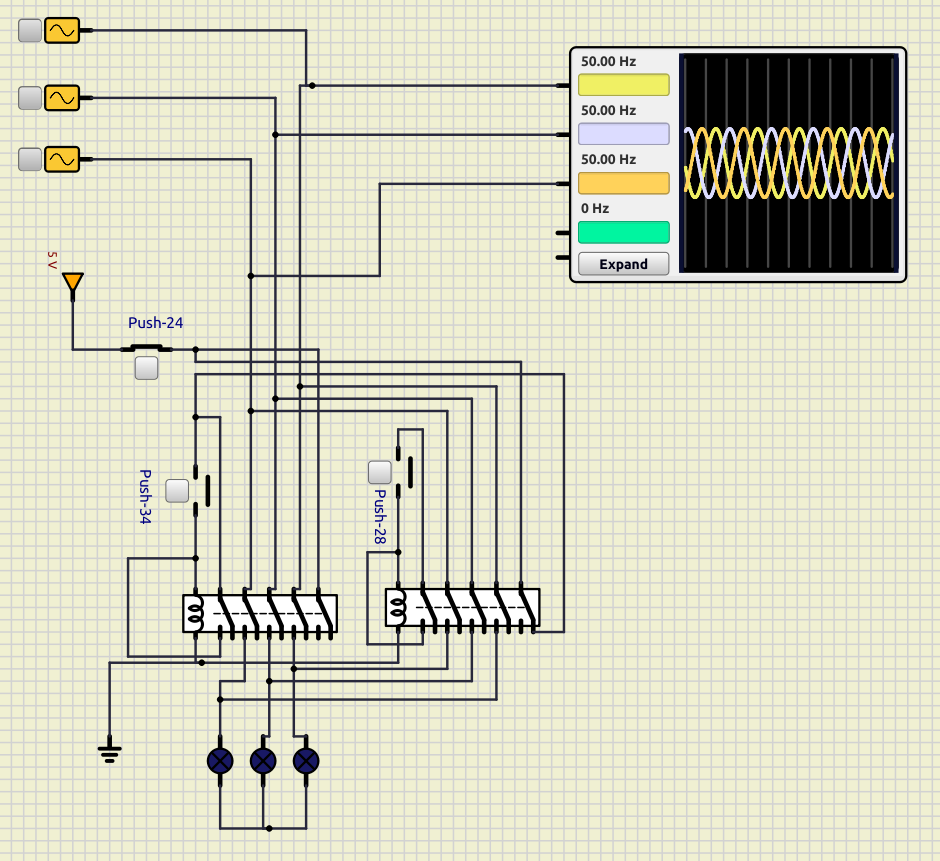

In any case that circuit is not the first one, it is this:
In the circuit at first post you can try to add a ground at the common point.
Sorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
To upload files you can zip it first.
In any case that circuit is not the first one, it is this:
In the circuit at first post you can try to add a ground at the common point.
![a13257968](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)
Quote from a13257968 on April 13, 2024, 2:13 pmQuote from arcachofo on April 13, 2024, 1:56 pmSorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
To upload files you can zip it first.
In any case that circuit is not the first one, it is this:
In the circuit at first post you can try to add a ground at the common point.
Thanks for replaying, sorry that seems I paste the wrong code, pls use this one:
<item itemtype="WaveGen" CircId="WaveGen-2" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-492,-312" rotation="0" hflip="1" vflip="1" label="WaveGen-2" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="120 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" /> <item itemtype="Oscope" CircId="Oscope-11" mainComp="false" Show_id="false" Show_Val="false" Pos="-32,-324" rotation="0" hflip="1" vflip="1" label="Oscope-11" idLabPos="-90,-100" labelrot="0" valLabPos="-16,20" valLabRot="0" Basic_X="135 _px" Basic_Y="135 _px" BufferSize="600000" connectGnd="true" InputImped="10 MΩ" TimDiv="4451907722" TimPos="-92619898223,-92619898223,-92619898223,-92619898223," VolDiv="100,100,100,100," Tunnels=",,,," Trigger="0" Filter="0.1 V" Trigger="0" AutoSC="4" Tracks="1" HideCh="false,false,false,false," VolPos="0,0,0,0," /> <item itemtype="Lamp" CircId="Lamp-8" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-316,-244" rotation="0" hflip="1" vflip="1" label="Lamp-8" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" /> <item itemtype="Lamp" CircId="Lamp-6" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-396,-308" rotation="0" hflip="1" vflip="1" label="Lamp-6" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" /> <item itemtype="Node" CircId="Node-15" mainComp="false" Pos="-168,-256" /> <item itemtype="WaveGen" CircId="WaveGen-3" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-488,-244" rotation="0" hflip="1" vflip="1" label="WaveGen-3" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="240 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" /> <item itemtype="Lamp" CircId="Lamp-7" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-316,-308" rotation="0" hflip="1" vflip="1" label="Lamp-7" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" /> <item itemtype="Node" CircId="Node-14" mainComp="false" Pos="-428,-244" /> <item itemtype="Node" CircId="Node-12" mainComp="false" Pos="-168,-308" /> <item itemtype="Capacitor" CircId="Capacitor-10" mainComp="false" ShowProp="Capacitance" Show_id="false" Show_Val="true" Pos="-344,-360" rotation="0" hflip="1" vflip="1" label="Capacitor-10" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Capacitance="0.5 µF" Resistance="1 µΩ" InitVolt="0 V" ReaStep="0 ns" /> <item itemtype="Node" CircId="Node-13" mainComp="false" Pos="-436,-308" /> <item itemtype="WaveGen" CircId="WaveGen-1" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-492,-360" rotation="0" hflip="1" vflip="1" label="WaveGen-1" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="0 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" /> <item itemtype="Lamp" CircId="Lamp-9" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-400,-244" rotation="0" hflip="1" vflip="1" label="Lamp-9" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" /> <item itemtype="Connector" uid="Connector-11" startpinid="WaveGen-2-outnod" endpinid="Node-13-0" pointList="-476,-312,-436,-312,-436,-308" /> <item itemtype="Connector" uid="Connector-17" startpinid="Node-12-2" endpinid="Node-15-0" pointList="-168,-308,-168,-256" /> <item itemtype="Connector" uid="Connector-10" startpinid="Oscope-11-Pin0" endpinid="Node-13-1" pointList="-120,-372,-436,-372,-436,-308" /> <item itemtype="Connector" uid="Connector-6" startpinid="Lamp-6-rPin" endpinid="Lamp-7-lPin" pointList="-380,-308,-332,-308" /> <item itemtype="Connector" uid="Connector-7" startpinid="Lamp-7-rPin" endpinid="Node-12-1" pointList="-300,-308,-168,-308" /> <item itemtype="Connector" uid="Connector-18" startpinid="Node-15-2" endpinid="Lamp-8-rPin" pointList="-168,-256,-168,-244,-300,-244" /> <item itemtype="Connector" uid="Connector-13" startpinid="Oscope-11-Pin1" endpinid="Node-14-1" pointList="-120,-340,-428,-340,-428,-244" /> <item itemtype="Connector" uid="Connector-15" startpinid="Node-14-2" endpinid="Lamp-9-lPin" pointList="-428,-244,-416,-244" /> <item itemtype="Connector" uid="Connector-12" startpinid="Node-13-2" endpinid="Lamp-6-lPin" pointList="-436,-308,-412,-308" /> <item itemtype="Connector" uid="Connector-16" startpinid="Oscope-11-PinG" endpinid="Node-15-1" pointList="-120,-260,-120,-256,-168,-256" /> <item itemtype="Connector" uid="Connector-14" startpinid="WaveGen-3-outnod" endpinid="Node-14-0" pointList="-472,-244,-428,-244" /> <item itemtype="Connector" uid="Connector-3" startpinid="Lamp-9-rPin" endpinid="Lamp-8-lPin" pointList="-384,-244,-332,-244" /> <item itemtype="Connector" uid="Connector-8" startpinid="Capacitor-10-rPin" endpinid="Node-12-0" pointList="-328,-360,-168,-360,-168,-308" /> <item itemtype="Connector" uid="Connector-1" startpinid="WaveGen-1-outnod" endpinid="Capacitor-10-lPin" pointList="-476,-360,-360,-360" />
Quote from arcachofo on April 13, 2024, 1:56 pmSorry that my account not allow to upload file with extension name with ".sim". So i paste the code here for u. Great thanks for helping.
To upload files you can zip it first.
In any case that circuit is not the first one, it is this:
In the circuit at first post you can try to add a ground at the common point.
Thanks for replaying, sorry that seems I paste the wrong code, pls use this one:
<item itemtype="WaveGen" CircId="WaveGen-2" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-492,-312" rotation="0" hflip="1" vflip="1" label="WaveGen-2" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="120 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" />
<item itemtype="Oscope" CircId="Oscope-11" mainComp="false" Show_id="false" Show_Val="false" Pos="-32,-324" rotation="0" hflip="1" vflip="1" label="Oscope-11" idLabPos="-90,-100" labelrot="0" valLabPos="-16,20" valLabRot="0" Basic_X="135 _px" Basic_Y="135 _px" BufferSize="600000" connectGnd="true" InputImped="10 MΩ" TimDiv="4451907722" TimPos="-92619898223,-92619898223,-92619898223,-92619898223," VolDiv="100,100,100,100," Tunnels=",,,," Trigger="0" Filter="0.1 V" Trigger="0" AutoSC="4" Tracks="1" HideCh="false,false,false,false," VolPos="0,0,0,0," />
<item itemtype="Lamp" CircId="Lamp-8" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-316,-244" rotation="0" hflip="1" vflip="1" label="Lamp-8" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" />
<item itemtype="Lamp" CircId="Lamp-6" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-396,-308" rotation="0" hflip="1" vflip="1" label="Lamp-6" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" />
<item itemtype="Node" CircId="Node-15" mainComp="false" Pos="-168,-256" />
<item itemtype="WaveGen" CircId="WaveGen-3" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-488,-244" rotation="0" hflip="1" vflip="1" label="WaveGen-3" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="240 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" />
<item itemtype="Lamp" CircId="Lamp-7" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-316,-308" rotation="0" hflip="1" vflip="1" label="Lamp-7" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" />
<item itemtype="Node" CircId="Node-14" mainComp="false" Pos="-428,-244" />
<item itemtype="Node" CircId="Node-12" mainComp="false" Pos="-168,-308" />
<item itemtype="Capacitor" CircId="Capacitor-10" mainComp="false" ShowProp="Capacitance" Show_id="false" Show_Val="true" Pos="-344,-360" rotation="0" hflip="1" vflip="1" label="Capacitor-10" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Capacitance="0.5 µF" Resistance="1 µΩ" InitVolt="0 V" ReaStep="0 ns" />
<item itemtype="Node" CircId="Node-13" mainComp="false" Pos="-436,-308" />
<item itemtype="WaveGen" CircId="WaveGen-1" mainComp="false" ShowProp="Phase" Show_id="false" Show_Val="true" Pos="-492,-360" rotation="0" hflip="1" vflip="1" label="WaveGen-1" idLabPos="-64,-24" labelrot="0" valLabPos="-16,8" valLabRot="0" Out="true" Running="true" Wave_Type="Sine" Freq="50 Hz" Phase="0 _º" Steps="1000 _Steps" Duty="50 _%" Always_On="false" Bipolar="false" Floating="false" Semi_Ampli="311 V" Mid_Volt="0 V" />
<item itemtype="Lamp" CircId="Lamp-9" mainComp="false" ShowProp="Resistance" Show_id="false" Show_Val="true" Pos="-400,-244" rotation="0" hflip="1" vflip="1" label="Lamp-9" idLabPos="-16,-24" labelrot="0" valLabPos="-16,6" valLabRot="0" Resistance="484 Ω" MaxCurrent="0.318 A" />
<item itemtype="Connector" uid="Connector-11" startpinid="WaveGen-2-outnod" endpinid="Node-13-0" pointList="-476,-312,-436,-312,-436,-308" />
<item itemtype="Connector" uid="Connector-17" startpinid="Node-12-2" endpinid="Node-15-0" pointList="-168,-308,-168,-256" />
<item itemtype="Connector" uid="Connector-10" startpinid="Oscope-11-Pin0" endpinid="Node-13-1" pointList="-120,-372,-436,-372,-436,-308" />
<item itemtype="Connector" uid="Connector-6" startpinid="Lamp-6-rPin" endpinid="Lamp-7-lPin" pointList="-380,-308,-332,-308" />
<item itemtype="Connector" uid="Connector-7" startpinid="Lamp-7-rPin" endpinid="Node-12-1" pointList="-300,-308,-168,-308" />
<item itemtype="Connector" uid="Connector-18" startpinid="Node-15-2" endpinid="Lamp-8-rPin" pointList="-168,-256,-168,-244,-300,-244" />
<item itemtype="Connector" uid="Connector-13" startpinid="Oscope-11-Pin1" endpinid="Node-14-1" pointList="-120,-340,-428,-340,-428,-244" />
<item itemtype="Connector" uid="Connector-15" startpinid="Node-14-2" endpinid="Lamp-9-lPin" pointList="-428,-244,-416,-244" />
<item itemtype="Connector" uid="Connector-12" startpinid="Node-13-2" endpinid="Lamp-6-lPin" pointList="-436,-308,-412,-308" />
<item itemtype="Connector" uid="Connector-16" startpinid="Oscope-11-PinG" endpinid="Node-15-1" pointList="-120,-260,-120,-256,-168,-256" />
<item itemtype="Connector" uid="Connector-14" startpinid="WaveGen-3-outnod" endpinid="Node-14-0" pointList="-472,-244,-428,-244" />
<item itemtype="Connector" uid="Connector-3" startpinid="Lamp-9-rPin" endpinid="Lamp-8-lPin" pointList="-384,-244,-332,-244" />
<item itemtype="Connector" uid="Connector-8" startpinid="Capacitor-10-rPin" endpinid="Node-12-0" pointList="-328,-360,-168,-360,-168,-308" />
<item itemtype="Connector" uid="Connector-1" startpinid="WaveGen-1-outnod" endpinid="Capacitor-10-lPin" pointList="-476,-360,-360,-360" />
![arcachofo](https://simulide.com/p/storage/ultimatemember/2/profile_photo-80x80.png?1725762844)
Quote from arcachofo on April 13, 2024, 2:19 pmThanks.
In the circuit at first post you can try to add a ground at the common point.
Or just not connect to Oscope Reference input (the last one besides "Expand" button).
Thanks.
In the circuit at first post you can try to add a ground at the common point.
Or just not connect to Oscope Reference input (the last one besides "Expand" button).
![a13257968](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)
Quote from a13257968 on April 13, 2024, 2:28 pmQuote from arcachofo on April 13, 2024, 2:19 pmThanks.
In the circuit at first post you can try to add a ground at the common point.
Or just not connect to Oscope Reference input (the last one besides "Expand" button).No problem, thanks for advicing. And the circuit first upload working well with ur suggestion, and if any idea about the 3 phase power one, pls let me know, thanks for ur great helping again!
Quote from arcachofo on April 13, 2024, 2:19 pmThanks.
In the circuit at first post you can try to add a ground at the common point.
Or just not connect to Oscope Reference input (the last one besides "Expand" button).
No problem, thanks for advicing. And the circuit first upload working well with ur suggestion, and if any idea about the 3 phase power one, pls let me know, thanks for ur great helping again!
![a13257968](https://simulide.com/p/core/modules/2c3734368b/assets/img/default_avatar.jpg)

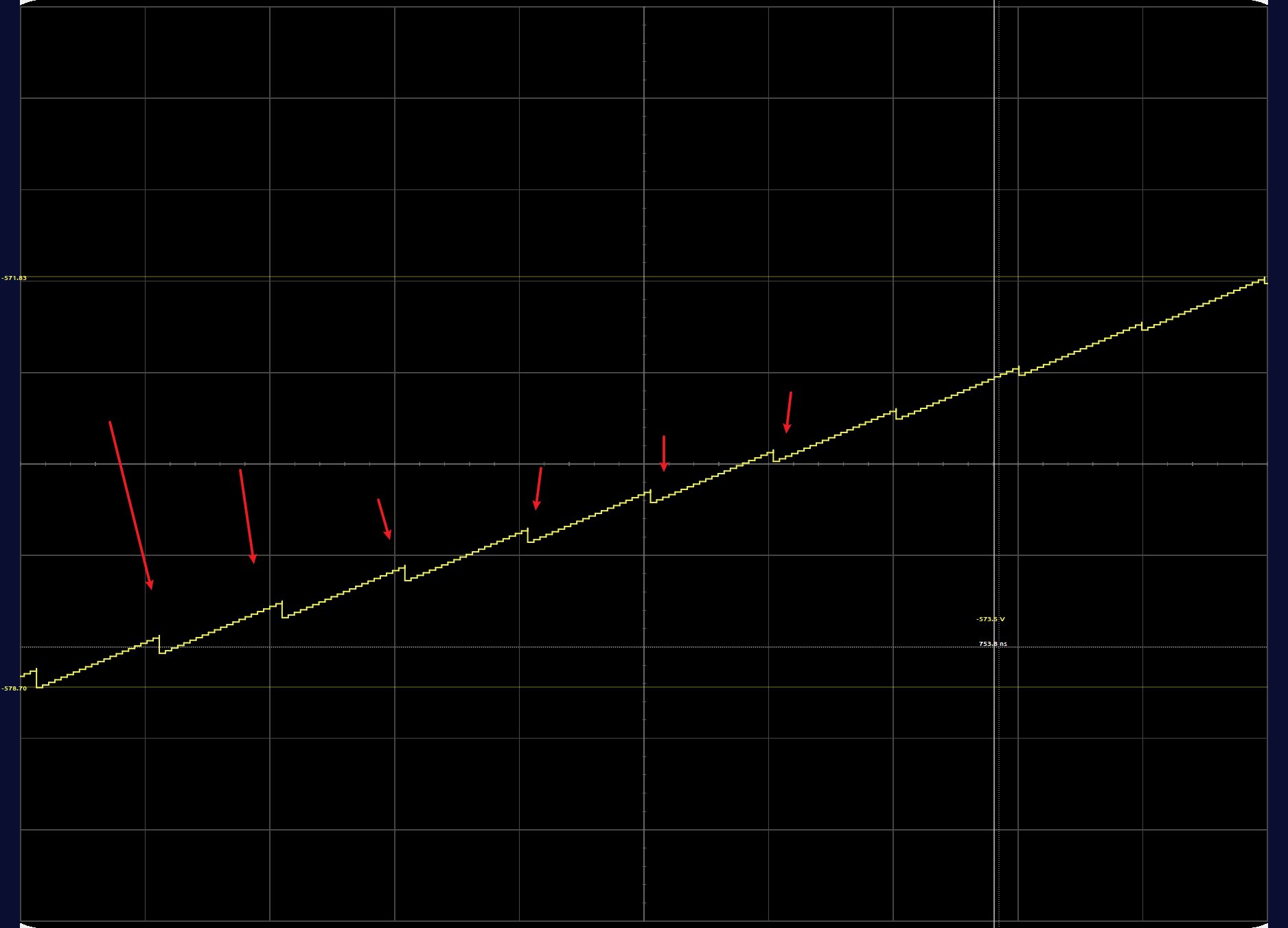

Quote from a13257968 on April 13, 2024, 4:10 pmBTW, here more detail for ur investigation. I found that the wave will drop down or just a spiker suddently. Thanks vm.
![]()
BTW, here more detail for ur investigation. I found that the wave will drop down or just a spiker suddently. Thanks vm.
