A tri-state buffer issue with a RAM component of my own. Can anybody help?

blitobyte
blitobyte@blitobyte
36 Posts
#1 · June 22, 2024, 6:28 pm

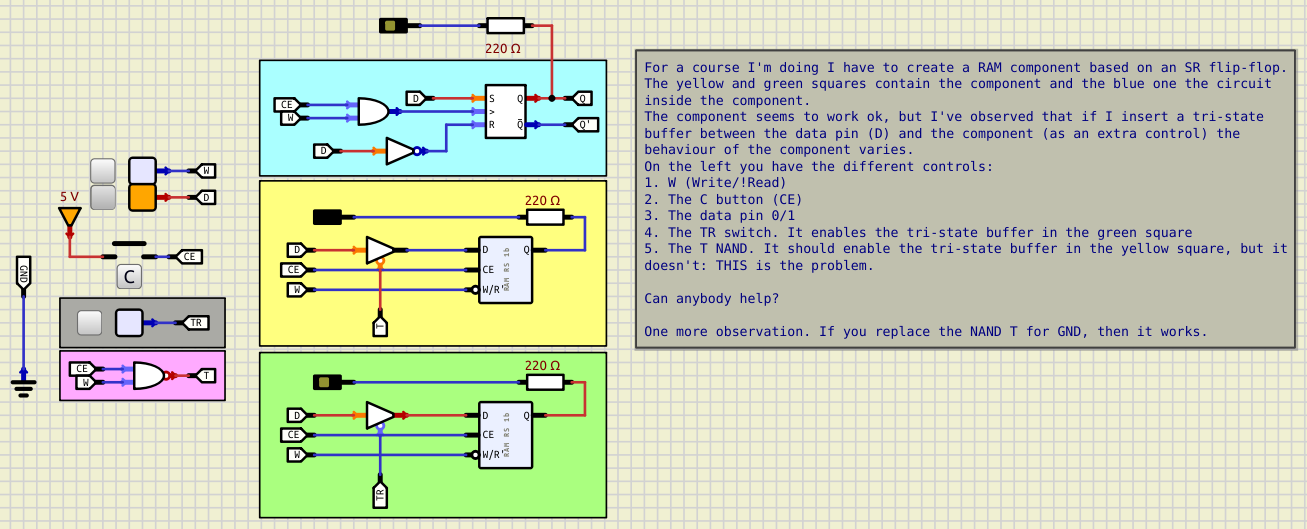

I think I'm having a problem with the behaviour of a tri-state buffer and I cannot find the reason. Cann anybody help? I'm including the source circuit and the RAM component source.

tri-state buffer issue



Uploaded files:
Click for thumbs down.0Click for thumbs up.0
Defran
Defran@defran
125 Posts
#2 · June 23, 2024, 12:57 pm

Try adding a clock delay (CE, 2 FF).
