#1 · December 20, 2023, 8:34 am

Good afternoon ! Defran !
I need your engine model with Hall sensor.
Tell me: where to insert the model and what to write?
Thank you very much ! ! !

#2 · December 20, 2023, 10:23 am

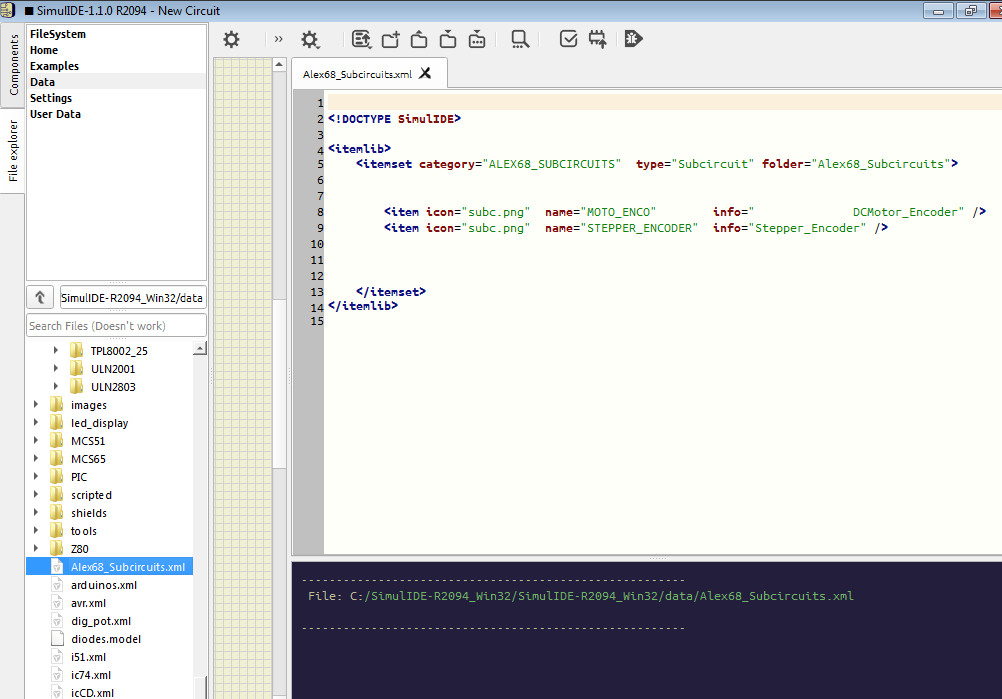

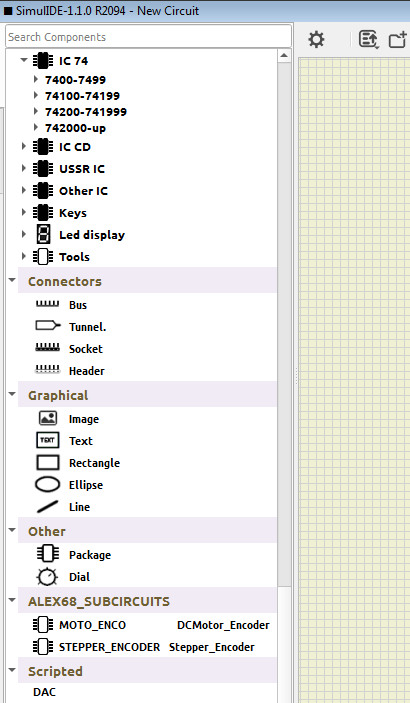

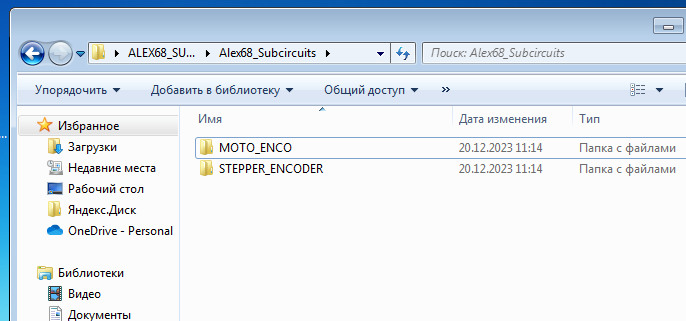

Copy these two files to the "data" folder of Simulide. At the bottom of the menu "ALEX68_SUBCIRCUITS" will appear. Whenever you want to use other Subcircuits use this as an example. Good luck.

Uploaded files:

ALEX68_SUBCIRCUITS.zip

KerimF and Alex68 have reacted to this post.

#3 · December 20, 2023, 11:33 am

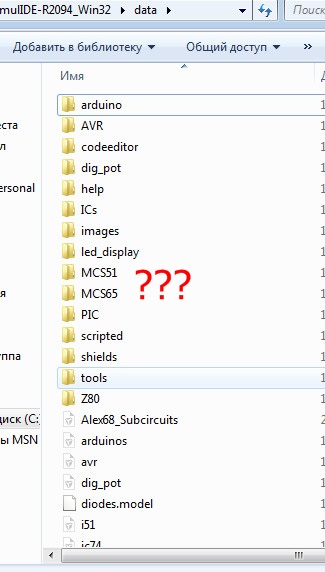

There is one below. Where should I insert the models?

Uploaded files:

#4 · December 20, 2023, 11:43 am

\\\\\\\

Uploaded files:

#5 · December 20, 2023, 12:10 pm

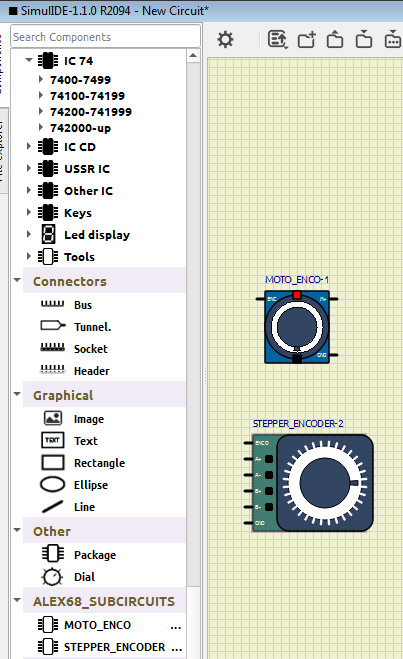

It’s not clear, the models don’t appear on the sheet???

Uploaded files:

#6 · December 20, 2023, 1:12 pm

Thank you very much !!!

Uploaded files:

Defran has reacted to this post.

#7 · December 20, 2023, 1:23 pm

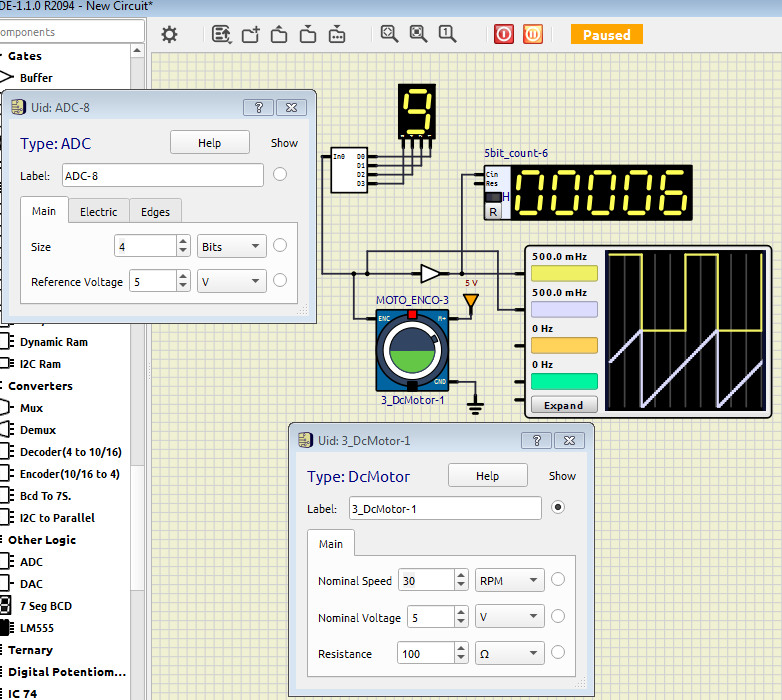

Just what I need. For one revolution there is one pulse from the HALL sensor. In addition, it is possible to calculate not a full revolution by steps.
Thank you ! WONDERFUL MODEL. I'll do something on it.

Uploaded files:

#8 · December 20, 2023, 3:02 pm

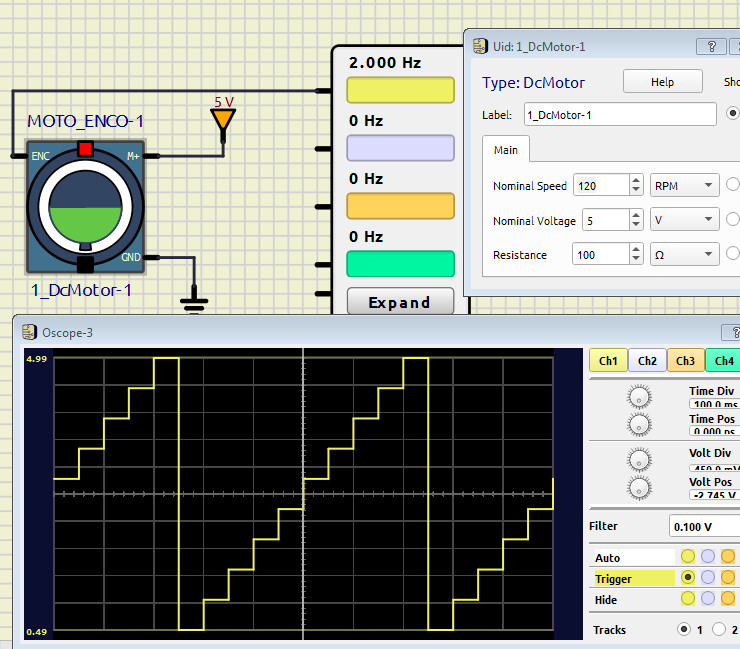

Counting full revolutions and corners

Uploaded files:

#9 · December 20, 2023, 3:05 pm

\\\\\\\

Uploaded files:

Подсчет-оборотов-двигателя.zip
